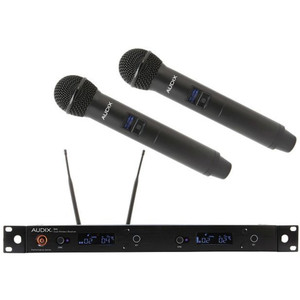

AUDIX AP42-OM5B Rackmount Dual Handheld Microphone Wireless System

 AP42-OM5B  AUDIX

 Rackmount Dual Handheld Microphone Wireless System

A high-performance handheld diversity wireless system featuring the legendary Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios, and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback, and the ability to handle SPLs in excess of 144 dB without distortion.

Features:

• Frequency A = 522 MHz – 554 MHz

• Frequency B = 554 MHz – 586 MHz

• R42 Two Channel Diversity Receiver

• 32 MHz Wide spectrum tuning receiver

• 106 Pre-coordinated frequencies

• One-touch auto scan searches for clear channel

• One-touch sync links transmitter to the receiver via infrared beam

• H60 OM5 Handheld Transmitter

• 64 MHz Wide spectrum transmitter with OM5 dynamic capsule module

• Durable metal housing

• 14 Hour run time – AA batteries

Specifications:

• Frequency Range: 522 MHz – 554 MHz / 554 MHz - 586 Bandwidth: 32 MHz

• Compatible Systems: 16 Compatible system operation

• Frequencies: 106 Preset frequencies

• Manual Mode: n/a

• Frequency Response: 45 Hz – 18 kHz

• Compander System: 2:1

• Pilot Tone: 32 kHz

• Receiving System: Single tuner, diversity

• Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted) Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz) Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted

• Audio Output (AF=0): Balanced -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load

• Output Connectors: 1/4", XLR

• Audio Level Adjust: Balanced: -12 to +9 dBu  Line: -24 to +4 dBu (adjustable in 3 dB-steps

• Range: 300', (91 M)

• Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A

• Dimensions: 205 mm (W) x 206 mm (D) x 44 mm (H) 406 mm (W) x 209 mm (D) x 44 mm (H) (R42)

• Net Weight 1.92 lbs. / 870 g 4.4 lbs. / 2.0 kg (R42)

SALE: $1279.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
