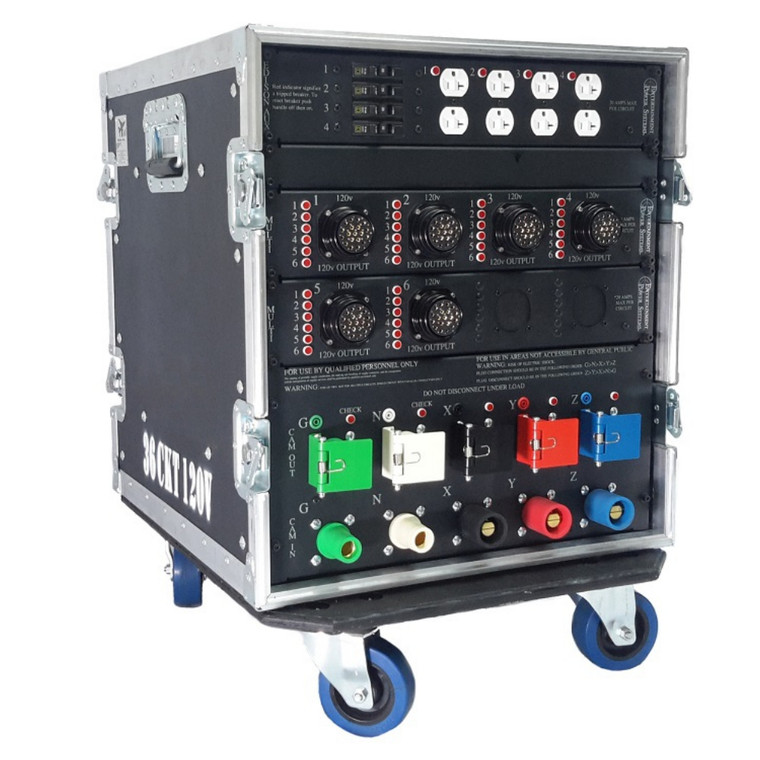

EPS LIGHTING / AUDIO / VIDEO POWER DISTRO 36 Circuit / 120v Multi Connectors in a Castered ATA Roadcase

 LIGHTING / AUDIO / VIDEO DISTRO  EPS

 36 Circuit / 120v Multi Connectors in a Castered ATA Roadcase

 SPECIAL ORDER / CUSTOM PRODUCT

If you need plenty of 120VAC circuits then this distro will do it for you! 19-pin multi connectors with red neon indicators front and back provides 36 circuits for your backline, audio, and lighting needs.

Each distro is made in the USA from top quality components for maximum safety and durability. Dual neutral mains connectors, indicator lights, test points, laser engraved panels are just a few of the many features. All mounted inside a rugged Northern Case ATA-style rack case on casters, for safe, easy transport and use.

Features:

• UL-Listed for safety and compliance

• Made in the USA with premium components

• Mains breaker

• Neon indicator lights

• Test points

• Laser-engraved panels

• UL-approved Northern Case (ATA-style rack)

• Heavy-duty casters for easy transport

• Connectors on the back

• Breakers on the front

• Clean, ergonomic setup

Specifications:

Portable Power Distribution System

• 3-Phase 400A input

• (40) Output Circuits @ 120V

Connections

• Inputs: Hubbell single pole cam-style 400A rated 3 phase power input, Reversed Ground and Neutral

• Pass-through: Hubbell single pole cam-style 400A rated 3 phase power output, Reversed Ground and Neutral Snap-back covers on all pass-thru connectors

• Outputs: (4) Hubbell heavy-duty industrial series NEMA 520R duplex receptacles with neon power indicator lights (6) Showsafe 19-Pin receptacles @ 120V with neon power indicator lights

Circuit Breakers

• Main Breaker: (1) Square D 3-Phase main breaker, three pole 200A with neon power indicator lights

• Branch Breakers: (40) Square D branch breakers - Single pole 20A with neon power indicator lights (5-20R and 19-Pin)

Voltage Test Points

• Phase color-coded 4mm Panel mount test point sockets for testing with a voltmeter Located adjacent to Hubbell single pole mains power output connectors

• Test points compatible with probes with spring loaded 4mm plugs with rigid insulation sleeve

Power Requirements

• Input voltage / frequency: 208V three phase 60Hz

• Power consumption: Idle - <100mA (neon indicator lights)

Physical

• Rack Spaces: 12RU

• Dimensions: 28.25"H (on casters) x 27"D x 22"W (71.7 x 68.7 x 55.9 cm)

• Weight: 152 lbs. (68.9 kg)

Construction / Finish

• ATA-style rack case

• Removable front and rear doors

• Black ABS exterior

• Aluminum clad interior

• Rolls on 4” casters

Environmental IP Rating

•  IP20 - Indoor Use Only Operation Temperature Range:  -20°F - 120°F (-28.8C - 48.8 C)

Approvals

• cULus Listed: UL1640 Standard for Portable Power Distribution Equipment

SALE: $8299.99

FREIGHT S&H in continental US (e-mail for international / offshore USA rates)
