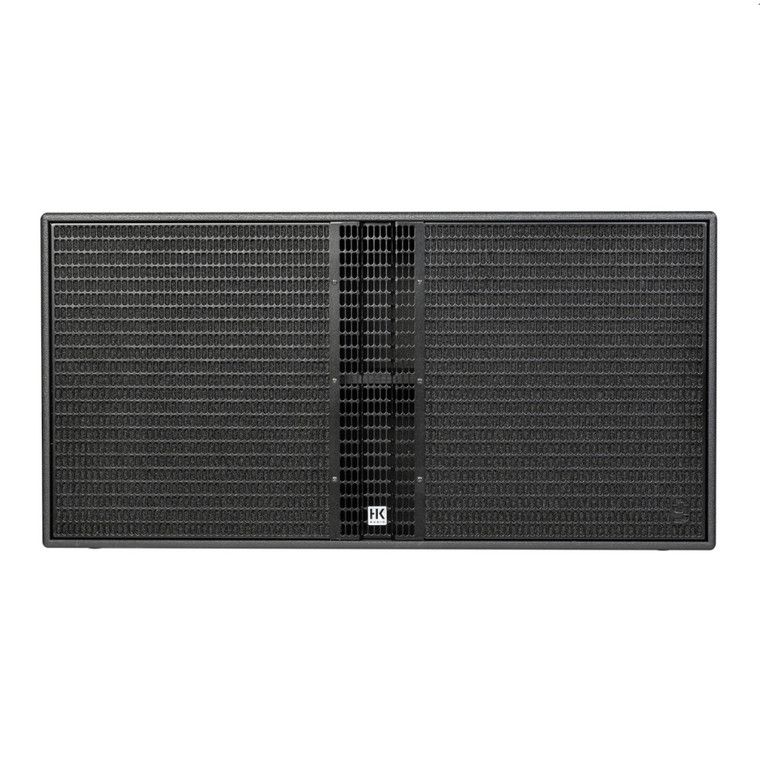

HK AUDIO LINEAR 9 118 SUB BA Long Throw Active 2x18" State of the Art Sub-Woofer

HK AUDIO
SKU:
182036
|
UPC:
4039373023794
$3,999.99
(No reviews yet)
Shipping:
Free Shipping
Current Stock:
Adding to cart… The item has been added

Expected release date is 8th Aug 2025

 LINEAR 9 118 SUB BA  HK AUDIO

 Long Throw Active 2x18" State of the Art Sub-Woofer

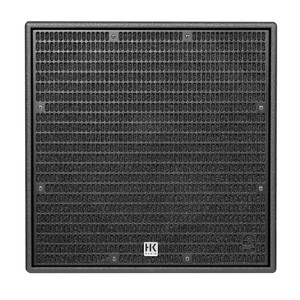

The LINEAR 9 118 Sub BA is a powerful 18" dual vented bandpass subwoofer. The generous size of the cabinet allows for an exceptionally high sound pressure level with a low cut-off frequency at the same time. This makes this subwoofer not only a perfect partner for powerful full-range speakers, but also an ideal sub low extension for the direct-radiating LINEAR 9 118 Sub A. Thanks to the integrated presets, cardioid setups can be implemented quickly and easily. The LINEAR 9 118 Sub BA is compatible with all LINEAR 9 Mid/High models.



Specifications:

  • Max. SPL @ 10% THD: 134 dB half space (40 Hz – 110 Hz averaged)

  • Max. SPL peak @ 10 % THD: 136 dB half space

  • Frequency response +/-3 dB: 38 Hz – X-over

  • Frequency response -10 dB: 31 Hz – X-over

  • Power amp output (RMS): 1100 W

  • Amp type: Class D

  • LF driver: 1x 18", 4" voice coil

  • Low-/mid speaker: N/A

  • HF driver: N/A

  • Horn directivity: N/A

  • Active crossover frequency: N/A

  • Maximum input level: +20 dBu

  • Analog inputs: 2x XLR combo balanced

  • Analog thru: 2x XLR balanced

  • DSP Out: balanced

  • Network port: Ethercon RJ45, 1x In, 1x Thru

  • Filter presets: Front, Cardioid 1:1, Cardioid 2:1, Remote

  • Remote software: DSP CONTROL (Windows, macOS)

  • DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

  • Sample rate: 96 kHz

  • System latency: Less than 2.6 ms

  • Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V

  • Power consuption: 1.9 A / 100–240 V nominal according to EN 62368-1

  • Clustering angle: N/A

  • Angles up (Monitor angle): N/A

  • Pole mount: 2x M20

  • Rigging points: N/A

  • Carrying handles: 8x MultiGrip

  • Housing: Birch multiplex

  • Finish: PU coating black

  • Front grille: 2 mm metal grille backed with black acoustic foam

  • Dimensions (WxHxD): 111 x 56 x 69 cm 43-9/32 x 22-3/64 x 27-11/64"

  • Weight: 63.5 kg / 139.9 lbs

SALE: $3999.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
