AUDIO TECHNICA ATW-1101/H Series 10 Digital 2.4GHz Headset Wireless Mic System

 ATW-1101/H  AUDIO TECHNICA

 Series 10 Digital 2.4GHz Headset Wireless Mic System

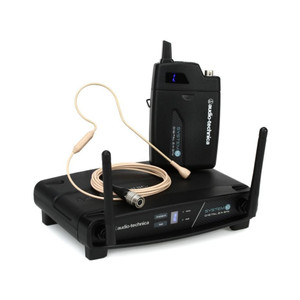

The ATW-1101/H configuration includes the ATW-R1100 receiver and ATW-T1001 UniPak® body-pack transmitter, along with the PRO 8HEcW headworn microphone.

System 10

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation; easy setup; and clear, natural sound quality. Operating in the 2.4GHz range, far from TV and DTV interference, this advanced package offers extremely easy operation and instantaneous channel selection. Up to 8 channels may be used together without any frequency coordination problems or group selection issues. The system's receivers and transmitters offer an easy-to-read digital ID display, and ensure clear communications by providing 3 levels of diversity assurance: frequency, time, and space.

• Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication.

• Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.

• Space Diversity uses 2 discreet antennas on each transmitter and receiver to maximize signal integrity.

Includes:

• ATW-R1100 receiver

• ATW-T1001 UniPak bodypack transmitter

• PRO 8HEcW headworn microphone

• AT8139S small microphone windscreen

Features:

• Includes ATW-R1100 receiver and ATW-T1001 UniPak bodypack transmitter

• Includes PRO 8HEcW headworn microphone

• Digital 24-bit / 48kHz wireless operation

• 2.4GHz range completely free from TV interference

• Frequency, Time and Space diversity assurance

Specifications:

Overall System

• Operating Frequencies: 2.4GHz ISM band

• Dynamic Range: > 109dB (A-weighted), typical

• Total Harmonic Distortion:

• Operating Range: 30m (100'). typical, open range environment with no interfering signals

• Operating Temperature Range: 32°F to 104°F (0°C to +40°C), note: battery performance may be reduced at very low temperatures

• Frequency Response: 20Hz - 20kHz, depending on microphone type

• Audio Sampling: 24-bit / 48kHz

ATW-R1100 receiver

• Receiving System: Diversity (frequency/time/space)

• Maximum Output Level: XLR, balanced: 0dBV, ¼" (6.3 mm), unbalanced: +6 dBV

• Power Supply: 100-240VAC (50 / 60Hz) to 12VDC, 0.5A (center-positive) switched mode external power supply

• Dimensions (W x H x D): 7.48" x 1.82" x 5.06" (190.0 x 46.2 x 128.5mm)

• Net Weight: 10.2oz (290g)

ATW-T1001 UniPak® transmitter

• RF Output Power: 10mW

• Spurious Emissions: Following federal and national regulations

• Input Connection: 4-pin Locking Connector: Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V

• Batteries (sold separately): (2) 1.5V AA

• Battery Life: > 7 hours (alkaline), depending on battery type and use pattern

• Dimensions (W x H x D): 2.76" x 4.21" x 0.98" (70.2 x 107 x 24.9mm)

• Net Weight (without batteries): 3.5oz. (100g)

PRO 8HEcW headworn microphone

• Element: Dynamic

• Polar Pattern: Hypercardioid

• Weight: 60g

• Dimensions: Microphone: 0.80" (20.4mm) diameter, Headset: 4.72" (120mm) nominal at widest point, 3.17" (80.5mm) flexible boom

• Output Connector: 4-pin HRS-type on cable

• Cable (L x Dia): 7.2' x 0.11" (2.2m x 2.8mm), miniature audio cable permanently-attached between microphone and connector for use with Audio-Technica UniPak® body-pack transmitters

SALE: $399.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
