FBT VERTUS CS1000 WHITE 2000w Total Peak Active Line Array PA Speaker System

FBT
SKU:
179868
$2,112.00
(No reviews yet)
Shipping:
Free Shipping
Current Stock:
Adding to cart… The item has been added

 VERTUS CS1000 WHITE  FBT

 2000w Total Peak Line Array PA Speaker System

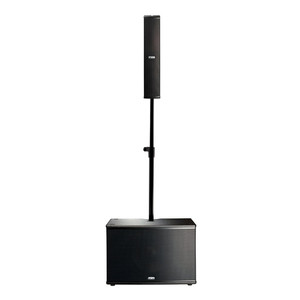

Created as a no-compromise choice for both live performers and installers, the VERTUS CS1000 compact line array combines maximum performance with a modular, scalable approach. Its lightweight but sturdy construction blended with FBT’s distinctive engineering and elegance has delivered a system that can be deployed on stage within minutes, or discreetly integrated into the most delicate of decors to provide high-quality sound and controlled directivity.


A bi-amplified design, the system comprises a long excursion 12” bass reflex subwoofer and a passive mounted satellite, linked via a Neutrik SPEAKON connector and equipped with six full-range neodymium 3” drivers. Onboard the subwoofer is a Class-D, two channel amplifier, complete with switch-mode power supply, delivering 600W RMS to the subwoofer and 400W RMS to the satellite, both of which are housed in birch plywood enclosures. For ease of use, a storage compartment is provided within the subwoofer enclosure to securely house both the satellite speaker and its supplied mounting pole for storage and transport. A dedicated locking system holds all of the equipment in place.

As with all FBT products, graceful but effective engineering is at the heart of the VERTUS CS1000, as exemplified by the mounting pole. Comprised of three sections, the pole allows users to alter the height of the satellite to suit their requirements, while a custom joint provides continuous vertical adjustment  to ensure precise coverage in every venue. No listener is left untouched by the VERTUS CS1000 – the slim proportions of the satellite facilitate a wide horizontal dispersion of 110°, while the precision placement of the six 3” drivers to form a J-array creates a vertical dispersion of 30° (+10° / -20°).

Need more power? The VERTUS CS1000 takes a modular approach in that two systems can be used in a dual configuration to form a totally coherent and much more powerful solution. By stacking the two subwoofers and locking the two satellites together end-to-end (via optional hardware), the maximum SPL of the overall system is raised by 6dB. Coverage is also extended – although the horizontal dispersion remains consistent, vertical dispersion increases to 40° (+20° / -20°).

Other features ensure ease of use and a rugged build quality. The subwoofer is equipped with aluminum handles complete with a rubber insert to guarantee a comfortable grip – transporting the entire system, including the subwoofer, satellite, mounting pole, joint and all cables, is both convenient and comfortable. The fanless amplifier module is protected by diecast aluminum, while onboard DSP offers a choice of eight dedicated presets, each one shaped by FBT’s long experience in creating proprietary algorithms to suit every requirement.

Finally, the VERTUS CS1000 is compact in dimension but big on sound. The volume of the satellite can be adjusted in accordance with the subwoofer in 8 steps between -4.5 / +5dB range, while a selectable high-pass filter ensures optimum reproduction. And as your requirements grow, the VERTUS CS1000 compact line array will grow with you – simply combine four systems in a two per-side stereo configuration to achieve a remarkable 8.000W peak.


Features:

  • Compact Integrated Array System, 2 way
  • Power: 600W + 400W RMS CLASS D
  • Satelite: 6x3'' full range neodymium woofers with 0.75'' voice coils
  • Subwoofer: 12'' long excursion woofer with 2.5'' voice coil , Bass reflex
  • Frequency response: 40Hz - 20KHz
  • SPLmax:129dB
  • DSP 8 presets
  • Dispersion 110° (H) x 30 ° (V)
  • The satellite and pole are fully integrated into the subwoofer cabinet, where a push button system locks the satellite in place for transportation
  • Ideal for both live applications and fixed installations

Specifications:

  • Built-in amplifier LF/HF: 600/400 W RMS
  • Built-in amplifier peak LF/HF: 1200/800 W
  • Frequency response: 40Hz - 20KHz -6dB
  • Low frequency woofer: 12 - 2.5 coil inch
  • High frequency driver: 6 x 3 - 0.8 coil neodymium inch
  • Maximum SPL cont/peak: 125/129 dB
  • Dispersion: 110° x 30° H x V
  • Input impedance: 22 Kohm
  • Crossover frequency: 180 KHz
  • Ac power requirements: 640 VA
  • Input connector: XLR with loop
  • Power cord: 5/16.4 mm/inch
  • Net Dimension (WxHxD): satellite 105x530x120 / 4.13x20.86x4.72 Subwoofer 565x373x450 / 22.24x14.68x17.71 mm/inch
  • Net weight: Satellite 3.5/7.71 Subwoofer 22.4/49.38 kg/lb
  • Transport Dimension (WxHxD): 695x473x580 / 27.36x18.62x22.83 mm/inch
  • Transport weight: 33.5/73.85 kg/lb

SALE: $2112.00

FREE S&H in continental US (e-mail for international / offshore USA rates)
