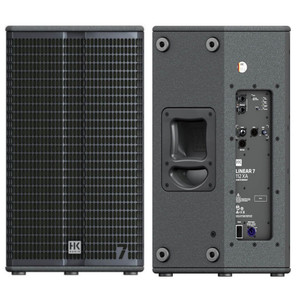

HK AUDIO LINEAR 7 110 XA 4000W Total Active PA System Speaker Pair

HK AUDIO
SKU:
179982
$3,239.99
(No reviews yet)
Shipping:
Free Shipping
Current Stock:

 LINEAR 7 110 XA  HK AUDIO

 4000w Total Active PA System Speaker Pair



State-of-the-art. The HK Audio Linear 7 L7 110 XA 10'' Active PA Speaker combines phenomenal performance with the latest technology to deliver the ultimate audio experience. Building on the legendary reputation of the Linear series, this Linear 7 loudspeaker gives you astounding SPLs, ultra-precise frequency reproduction, and excellent coverage.


Loaded with intelligent networking technology and a powerful DSP platform, you can control every aspect of your Linear 7 system's DSP settings from one central spot. An innovative DSP output lets you integrate an extra non-network-compatible powered cabinet into your network, which you can also control remotely. Plus, with high-resolution low-latency 96kHz AD/DA converters and futureproof MILAN audio-streaming, you have everything you need to create the ultimate sonic performance.

Features:

  • Effective maximum sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers

  • Ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity

  • state-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration

  • Latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot.

  • Additional DSP-Out that lets you integrate an added non-network-compatible powered cabinet (such as your LINEAR series active subwoofers) into the network and remotely control it with all the parameters of the LINEAR 7 DSP.

  • Direct access to easy selectable presets for use as monitor or in a system, even in a non-network setup

  • Futureproof Audio-Streaming (Certification for MILAN is in the works)

  • High resolution 96 kHz AD/DA converters, FIR-filtering, low latency

  • Multi-purpose housing for use as an FOH or monitor speaker

  • User friendly rigging and mounting options

Specifications:

  • Max. SPL @ 10% THD: 126 dB half space (70 Hz – 12 kHz averaged)

  • Max. SPL peak @ 10 % THD: 129 dB half space

  • Frequency response +/-3 dB: 70 Hz – 19 kHz

  • Frequency response -10 dB: 65 Hz – 20 kHz

  • Power amp output (peak power): 2000 W

  • Amp type: Class D - biamped

  • Low-/mid speaker: 1x 10", 2.5" voice coil

  • HF driver: 1", 1.4" voice coil

  • Horn directivity: 80° x 60° CD horn, rotatable

  • Active crossover frequency: 2 kHz FIR X-over with 60 dB/oct.

  • Maximum input level: +20 dBu

  • Analog inputs: 1x XLR combo balanced

  • Analog thru: 1x XLR balanced

  • DSP Out: 1x XLR

  • Network port: Ethercon RJ45, 1x In, 1x Thru

  • Filter presets: Flat, Monitor, Low Cut, Remote

  • Remote software: DSP CONTROL (Windows, Mac OS)

  • DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

  • Sample rate: 96 kHz

  • System latency: Less than 2.6 ms

  • Mains connector: 1x Powercon NAC3 In, 100–240 V

  • Power consumption; 1 A / 100–240 V nominal according to EN 62368-1

  • Angels up (Monitor angle): 30°

  • Pole mount: DuoTilt 3°/7°

  • Rigging points: 5x M8 (AP-8)

  • Carrying handles: 2x SingleGrip

  • Housing: Hybrid (birch multiplex/MDF)

  • Finish: Black acrylic enamel

  • Front grille: 2 mm metal grille backed with black acoustic foam

  • Dimensions (WxHxD): 36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64"

  • Weight: 17 kg / 37.5 lbs

SALE: $3239.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
