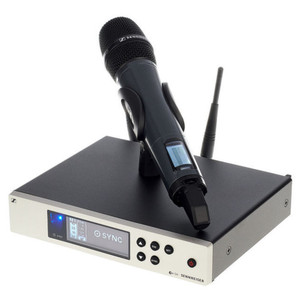

SENNHEISER EW 100 G4-935-S Evolution Wireless Rackmount Vocal Mic

$549.99

SENNHEISER EW 100 G4-935-S Evolution Wireless Rackmount Vocal Mic

$549.99
SKU:
180123
Shipping:
Free Shipping
Share

Product Description

 EW 100 G4-935-S  SENNHEISER



 Evolution Vocal Wireless Mic System





Part of the evolution wireless G4-series from Sennheiser, the ew100G4-935-S handheld microphone set is engineered for professional live sound. It's a rugged, all-in-one wireless system, great for singers and presenters. It includes Sennheiser's industry-renowned e935 capsule mounted on a lightweight aluminum transmitter with integrated mute switch. Versatile wireless systems for those who sing, speak, or play instruments with up to 42MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.


Sennheiser ew 100 G4-935-S Includes:

  • (1) EM 100 G4 true diversity receiver

  • (1) SKM 100 G4-S handheld transmitter

  • (1) MMD 935-1 microphone head

  • (1) GA 3 rackmount set

  • (1) MZQ 1 microphone clamp

  • (1) Power supply

  • (2) AA batteries

  • (2) Rod antennas

  • (1) RJ 10 linking cable

  • (1) Quick guide

  • (1) Safety guide

  • (1) Manufacturer declaration sheet

  • (1) Fequency supplement sheet

Sennheiser evolution wireless G4 100 Series Features:

  • Evolving with you: Flexibility, Safety, Power

  • Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters

  • State-of-the-art live sound featuring Sennheiser's renowned e935 mic capsule on a lightweight aluminum transmitter, with integrated mute switch.

  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Fast frequency allocation for up to 12 receivers via linking functionality

  • Up to 20 compatible channels

  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

  • Transmission Range: up to 330ft (100m)

  • High RF output power (up to 30 mW) depending on country regulations

  • Includes a GA 3 rackmount kit

Sennheiser ew 100 G4-935-S Specifications:



EM 100 G4 Receiver

  • Dimensions: Approx. 190 x 212 x 43mm

  • Compander: Sennheiser HDX

  • THD, total harmonic distortion: = 0.9 %

  • Weight: Approx. 980 g

  • Audio output: 6.3 mm jack socket (unbalanced): +12 dBu / XLR socket (balanced): +18 dBu

  • Signal-to-noise ratio: = 110 dBA

  • Switching bandwidth: up to 42 MHz

  • Peak deviation: ±48 kHz

  • Nominal deviation: ±24 kHz

  • Operating time: Typically 8 h

  • Modulation: Wideband FM

  • Power supply: 12 V DC

  • Antenna connector: 2 BNC sockets

  • Current consumption: 300 mA

  • Adjacent channel rejection: = 65 dB

  • Intermodulation attenuation: = 65 dB

  • Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

  • RF sensitivity: < 2.5 µV for 52 dBA eff S/N

  • Temperature Range: -10° C to +55° C

  • Receiver Principle: True diversity

  • Blocking: = 70 dB

Squelch

  • Low: 5 dBµV
  • Middle: 15 dBµV
  • High: 25 dBµV

Equalizer

  • Preset 1: Flat

  • Preset 2: Low Cut (-3 dB at 180 Hz)

  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  • Preset 4: High Boost (+6 dB at 10 kHz)

SKM 100 G4-S

  • Dimensions: Approx. Ø 50 x 265 mm

  • Compander: Sennheiser HDX

  • THD, total harmonic distortion: = 0.9 %

  • Weight: (including batteries) approx. 450 g

  • Signal-to-noise ratio: = 110 dBA

  • RF output power: Max. 30 mW

  • Switching bandwidth: up to 42 MHz

  • Peak deviation: ±48 kHz

  • Nominal deviation: ±24 kHz

  • Operating time: Typically 8 h

  • Modulation: Wideband FM

  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack (sold separately)

  • Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: = 25 µA

  • Input impedance: 40 kOhms

  • Max. Input voltage: 3 Veff

  • Powering: 3 V battery / 2.4 V rechargeable battery

  • Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

  • AF frequency response: 80 – 18,000 Hz

  • Temperature Range: -10° C to +55° C

  • Frequency stability: = ±15 ppm

  • MMD 845-1 Mic Capsule

  • Sound pressure level (SPL): 154 dB SPL

  • Transducer principle: dynamic

  • Pick-up pattern: cardioid

  • Sensitivity: 2.1 mV/Pa

SALE: $549.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
