SHURE GLXD14PLUS/85-Z3 Dual Bandwidth Rechargeable Digital Lavalier Wireless Mic System

SHURE
SKU:
181453
|
UPC:
042406695534
$619.99
(No reviews yet)
Shipping:
Free Shipping
Current Stock:
Adding to cart… The item has been added

 GLXD14+/85-Z3  SHURE

 Dual Band Rechargeable Lavalier Wireless System

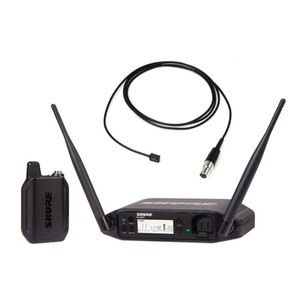

When it's showtime, Shure's dropout-free GLXD+ Dual Band Digital Wireless lets you take the stage with total confidence, providing rock-solid performance so you can focus on your message. The GLXD14+ includes a tabletop receiver, bodypack transmitter, and WL185 Lavalier Microphone. With its advanced Dual Band Wireless Technology, GLXD+ operates in the license-free 2.4 and 5.8GHz ranges, providing more than double the available bandwidth and intelligently avoiding interference. The GLXD14+ is a tabletop system that's easy to set up and operate thanks to auto-pairing and Smart frequency management. The transmitter features a twelve-hour runtime battery making power concerns a thing of the past. Of course, things don't always go as planned. So Shure engineered the SB904 battery to deliver a 1.5-hour runtime from a 15-minute quick charge. And you have options because the SB904 can be recharged in the receiver's front panel or via USB-C while still in the transmitter. Get your GLXD14+ today and experience the freedom!


Includes:

  • 1 GLXD4+ Tabletop Receiver

  • 1 GLXD1+ Bodypack Transmitter

  • 1 WL185 Lavalier Microphone

  • 1 PS43 Power Supply

  • 1 SB904 Lithium-Ion Rechargeable Battery

  • 1 Black Carrying Case

Features:

  • Tabletop GLXD+ Dual Band receiver + bodypack transmitter

  • WL185 Cardioid Condenser Microphone

  • Dual Frequency operation (2.4GHz and 5.8GHz)

  • Very similar look and same features available in prior GLXD version

Specifications:

System Compatibility

  • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions

  • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions

System Operating Range

  • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions

  • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions

  • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)

  • Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type

  • Dynamic Range: 120 dB, A-weighted

  • RF Sensitivity: -88 dBm, typical

  • Total Harmonic Distortion: 0.07%, typical

  • RF Output Power: 10 mW E.I.R.P. max

  • Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.

  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)

  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces

  • positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.

  • Battery Life: Up to 12 hours

  • NOTE: All Specifications are subject to change. Performance may vary depending on country regulations and operating environment.

GLXD4+ Receiver

  • Dimensions: 7.2 x 4.8 x 1.6 in. (182.8 x 121.97 x 40.3 mm), H x W xD, antennas folded

  • Weight: 10.9 oz (310 g)

  • Housing: Molded Plastic

  • Power Requirements: 14.5 V - 17 V, 600mA

  • Spurious Rejection: >35 dB, typical

  • Gain Adjustment Range: -20 to 40 dB in 1 dB steps

  • Phantom Power Protection: Yes

  • Configuration: XLR Output, Impedance balanced / 6.35 mm (1/4“) output, Impedance balanced

  • Impedance: XLR Output: 100 Ω / 6.35 mm (1/4“) output: 100 Ω (50 Ω, Unbalanced)

  • Maximum Audio Output Level

  • XLR connector (into 600 Ω load): 1 dBV

  • 6.35 mm (1/4“) connector (into 3 kΩ load): +8.5 dBV

  • Pin Assignments: XLR Output: 1=ground, 2=hot, 3=cold / 6.35 mm (1/4“) connector: Tip=audio, Ring/Sleeve=ground

  • Receiver Antenna Input: Impedance: 50 Ω

  • Antenna Type: Dual Band 1/2 Wave Sleeve Dipole, non-removable

  • Maximum Input Level: −20 dBm

GLXD2+ Bodypack Transmitter

  • Dimensions: 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D), without antenna

  • Weight: 5.4 oz (153.1 g), without battery

  • Power Requirements: 3.7 V Rechargeable Li-Ion

  • Housing: Cast Metal, Black Powdercoat

  • Input Impedance: 900 kΩ

  • RF Output Power: 10 mW E.I.R.P. max

  • Transmitter Input: Connector: 4-Pin male mini connector (TA4M)

  • Configuration: Unbalanced

  • Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)

  • Antenna Type: Dual Band Internal Monopole

  • Pin Assignments: TA4M

  • 1: Ground (cable shield)

  • 2: + 5 V Bias

  • 3: Audio

  • 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

WL185 Microphone

  • Type: Condenser (electret bias)

  • Frequency Response: 50 to 17,000 Hz

  • Output Impedance: 1800 Ω

  • Output Level: open circuit voltage: −38 dBV/Pa(13 mV)

  • Output Clipping Level, at 1 kHz: 0.25 V at 120 dB

  • Total Harmonic Distortion: Less than 1% at 120 dB

  • Maximum SPL: 120 dB

  • Dynamic Range (Maximum SPL, A-weighted): 102.5 dB

  • Output Noise (equivalent SPL): 18 dB typical, A-Weighted

  • Hum Pickup: N/A

  • Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)

  • Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*

  • Recommended Operating Voltage: 2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)

  • Current Drain: 40 µA typical

  • Operating Temperature: −18 to 57°C (0 to 135°F)

  • Storage Temperature: −29 to 74°C (−20 to 165°F))

  • Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature Connector Type TA4F

  • Microphone Case: Black ABS thermoplastic case with stainless-steel-mesh grille

  • Microphone Net Weight: 16 g (0.57 oz.)

SALE: $619.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
