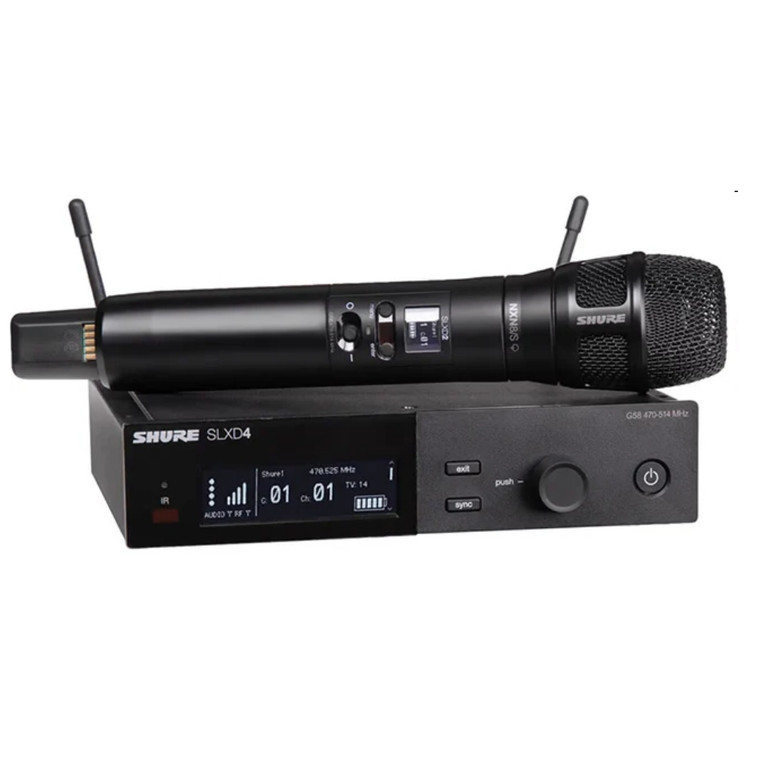

SHURE SLXD24/N8SB-G58 Digital Wireless Nexadyne SuperCardioid Mic System

 SLXD24/N8SB-G58  SHURE

 Digital Wireless Rackmount Nexadyne Handheld System

SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock-solid wireless performance with easy setup and rechargeability options in a versatile suite of wireless system configurations. Sporting industry-leading digital wireless technology and design, the SLXD2 easily syncs with the included SLXD4 receiver. It offers a variety of interchangeable alternatives to the 8C capsule, ensuring the right solution for a wide range of applications, from day-long presentations to all-night performances.

Equipped with patented Shure Revonic™ dual-engine transducer technology, the Nexadyne 8/S Dynamic capsule features two precisely calibrated transducers that work together flawlessly to deliver exceptional performance. Experience top-tier acoustic signal processing, uncanny polar pattern linearity, and best-in-class noise reduction. The focused and natural supercardioid polar pattern ensures that your vocals are front and center while rejecting noise from the back and sides.

With a 20 Hz to 20 kHz frequency range, 118 dB dynamic range, digital predictive switching diversity, and an operating range of 100 meters (300 feet), SLX-D® supports up to 32 available channels per frequency band and up to 10 compatible systems per 6 MHz TV band. Pairing transmitters and receivers is made easy with IR scan and sync, and the system provides up to 8 hours of battery life with 2 AA batteries, upgradeable to the Shure SB903 Lithium-ion rechargeable battery for detailed battery monitoring. performance, reliability, and world-class audio. Be Shure.

Shure SLXD24/N8SB Applications:

• Event, Presentation and Speech

• House of Worship

• Performance and Clubs

• Videography and Location Sound

• Electronic News Gathering (ENG) and Broadcast

Shure SLXD24/N8SB Includes:

• 1 SLXD2/N8SB Digital Wireless Handheld Transmitter

• 1 SLXD4 Single-Channel Wireless Receiver

• 1 Zippered Carrying Pouch

• 1 WA371 Mic Clip

• 2 AA Alkaline Batteries

Shure SLXD24/N8SB Features:

• Transparent 24-bit digital audio

• Extended 20 Hz to 20 kHz frequency range (microphone dependent)

• 118 dB dynamic range

• Digital predictive switching diversity

• Operating range of 100 m (300 ft.)

• 44 MHz tuning bandwidth (region dependent)

• 32 available channels per frequency band (region dependent)

• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band

• Easy pairing of transmitters and receivers over IR scan and sync

• Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.

• Rugged metal construction

Shure SLXD24/N8SB Specifications:

SLXD2

• Battery Type Rechargeable Li-Ion or 1.5 V AA batteries

• Dimensions (Dia. × L) 1.46 × 6.93 in (37.1 × 176 mm)

• Weight 5.2 oz. (147 g)

• Housing: Aluminum

AUDIO INPUT

• Configuration Unbalanced

• Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type

RF OUTPUT

• Antenna Type Integrated Single-Band Helical

• Occupied Bandwidth

• Modulation Type Shure Proprietary Digital

• Power 1 mW/10 mW Varies by region. See Frequency Range and Output Power Table.

SLXD4

• Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)

• Weight: 1.8 lb (816 g) without antennas

• Housing: Galvanized Steel

• Power Requirements: 15 VDC @ 600 mA Supplied by external power supply (tip positive)

RF INPUT

• Spurious Rejection: >75 dB Typical

• Connector: Type BNC

• Impedance:50 Ω

AUDIO OUTPUT

• Gain Adjustment Range: –18 to +42 dB in 1 dB steps

• Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)

• Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced) XLR (line): 400 Ω (200 Ω Unbalanced) XLR (mic): 150 Ω

• Full-Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): –15 dBV

• Mic/Line Switch: 30 dB pad

• Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes

NETWORKING

• Network Interface Single Port Ethernet 10/100 Mbps

• Network Addressing Capability: DHCP or Manual IP address

• Maximum Cable Length: 100 m (328 ft)
