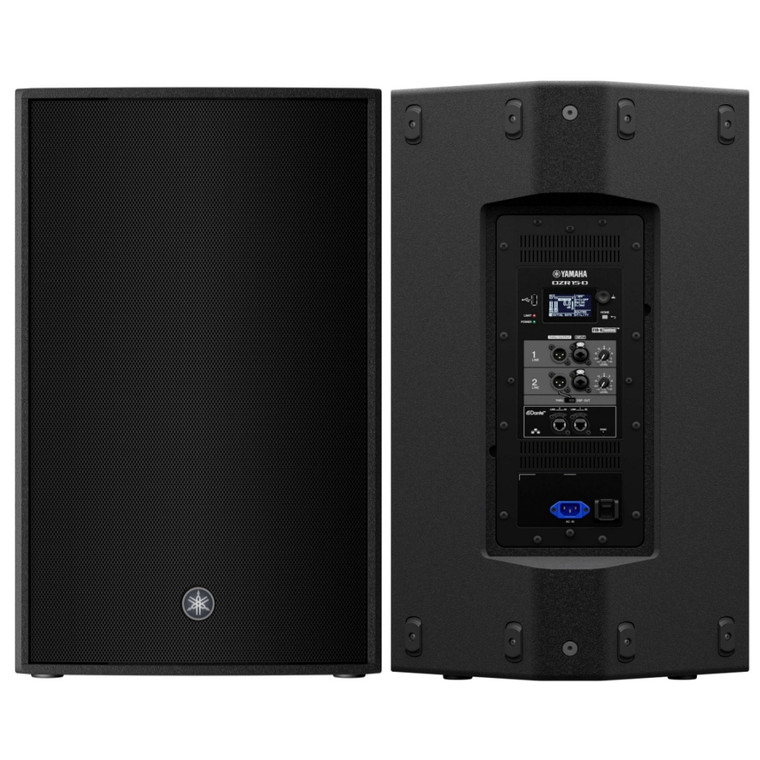

YAMAHA DZR15-D 4000w Total Active Dante 15" PA System Pair

 DZR15-D  YAMAHA

 4000w Total Active Dante 15" PA System Pair

A Dante™-equipped 2-way bi-amped powered loudspeaker from Yamaha, the DZR15-D offers exceptional clarity at an impressive 139 dB maximum best-in-class SPL. Other features include unrivaled low-frequency sound reproduction and sophisticated DSP processing, all providing a truly professional sound delivered with a level of power that is belied by its compact and lightweight design.

Features:

• 2-way powered loudspeaker with a 2" HF and a 15" LF

• Maximum 139 dB SPL and 34 Hz - 20 kHz frequency range is ideal for today's professional audio demands

• High power 2000W Class-D amplifier module

• 96 kHz DSP and FIR filter for true high-resolution sound with super low latency

• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion

• Equipped with Dante I/O (2-in/2-out) and features SRC (sample rate conversion), allowing 48 kHz device compatibility

• Access a variety of DSP functions and load presets,or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display

• D-Contour and highly reliable protection circuits

• Floor monitoring setting enables mirroring configuration

• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

• Optional speaker cover (SPCVR-DZR15) (sold separately)

• Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

Specifications:

• System Type: 2-way, Bi-amped Bass-reflex Powered Loudspeaker

• Frequency Range (-10 dB): 34 Hz - 20 kHz

• Coverage Angle: H90 degrees x V50 degrees (rotatable)

Components

• LF: 15" Cone, 3" Voice Coil, Neodymium magnet

• HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

• Crossover: 1.7kHz (FIR-X)

• Sampling Frequency Rate (Internal): 96 kHz and FIR filter

• AD/DA Converter: 96 kHz AD/DA

• Maximum output level (1m; on axis): 139 dB SPL (measured peak SPL with pink noise @1m)

Power Rating

• Dynamic: 2000W (LF:1000W, MF/HF: 1000W; total peak power of individual outputs (AC 120V, 25° C). This value was measured at minimum load impedance, with protection released)

• Continuous: 1300W (LF: 920W, MF/HF: 380W)

Connectors

• Analog IN: combo x2, Line level (Maximum +24 dBu), Input impedance 20 kOhms

• Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT

• Digital I/O: etherCON CAT5e x2 (Daisy Chain), 2 IN/ 2 OUT (Fs: 44.1k, 48k 88.2k, 96k) and Remote Control, 1000BASE-T

• Others: USB: USB2.0 Host 5V 500mA, for USB memory DATA storage/load

• Power: AC IN: IEC AC inlet x1 (V-Lock)

• Amplifier Type: Class-D

• Cooling: Fan cooling, Variable speeds

• Power Consumption: 45W (Idle) 150W (1/8)

• Handles: Aluminium die-cast, Side x2

• Rigging Options: M10 x12

• Enclosure Material/Finish/Color: Plywood/Durable Polyurea Coating/Black

• Floor monitor angle: 50° symmetrical

• Pole Socket: Ø35mm x2 (0 degrees or -7 degrees)

• Dimensions (W x H x D, with rubber feet): 17.7" x 30.0" x 18.1" (450 x 761 x 460mm)

• Weight: 55.6 lbs. (25.2 kg)

SALE: $3559.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
