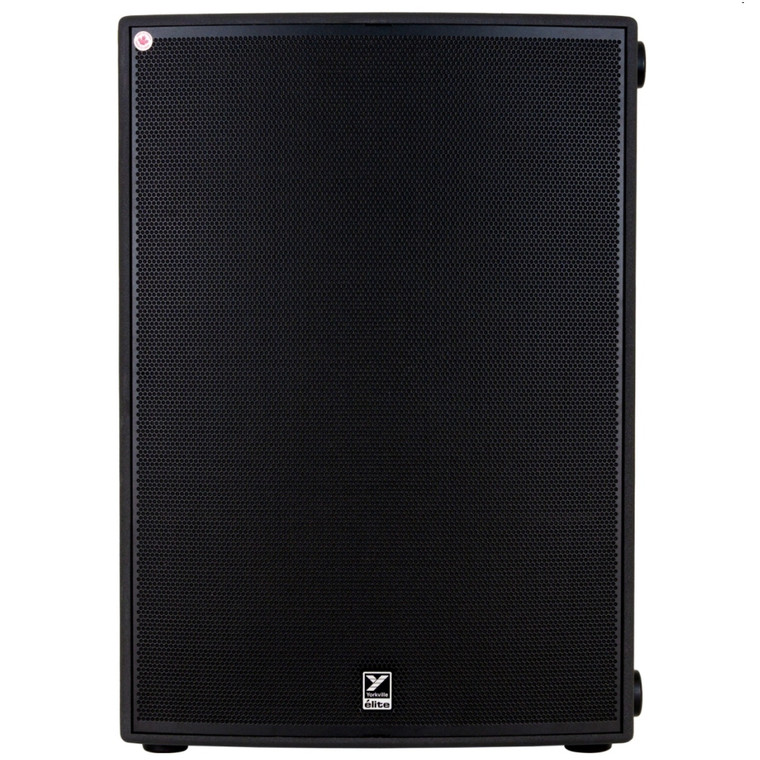

YORKVILLE ELITE EL24S 5000w Peak Active 21" Sub-Woofer, Casters, Onboard Limiter

 EL24S  YORKVILLE

 5000w Peak Active 24" Sub-Woofer with Casters

Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.

The EL24S is the world’s first 24” active subwoofer for live sound. As groundbreaking as it is earthshaking, it features a neodymium driver with a 2-foot diameter and 6” voice coil. It delivers 5000 watts of peak power (2500 watts program), 143 dB peak SPL (137 dB continuous), and a frequency response of 30 Hz – 100 Hz. The result is uniquely deep and powerful bass that must be experienced to be believed.

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 compatible input and output connectors.

Like all Elite loudspeakers, the EL24S is proudly made at the Yorkville factory outside of Toronto, Canada.

Features:

• 5000 W Peak Power (2500 W Program)

• 143 dB Max SPL (137 dB Continuous)

• 24” Neodymium Woofer with 6” Voice Coil

• 30 Hz - 100 Hz Frequency Response

• Onboard Limiter

• 2x XLR Inputs with Full-Range Parallel Outputs

• 2x High-Passed XLR Outputs

• 15 mm Birch Plywood Construction

• Made in Canada

Specifications:

• System Type: Powered Subwoofer

• Power Rating: 5000 W Peak (2500 W Program)

• Max SPL: 143 dB Peak (137 dB Continuous)

• Frequency Response: 30 Hz - 100 Hz (+/- 3 dB)

• Crossover Frequency: 100 Hz

• LF Driver(s): 24" Neodymium with 6" Voice Coil

• Power Cable: powerCON® TRUE1 Compatible Connectors (Input / Output)

• Power Consumption: 6.5A, 12A (typ/max)

• Inputs: 2x Combo-jack (XLR / 1/4” TRS)

• Outputs: 2x XLR High-Pass / 2x XLR Link (Full Range)

• Level Controls: Yes

• LED Indicators: Power, Activity, Protection

• Wheels: 2x Rigid, 2x Swivel Casters

• Bar Handles: 2x Top, 6x Side, 2x Bottom

• Flying Hardware: No

• Pole Mount Adapter: 1x Top, 1x Side

• Enclosure Materials: 15mm Birch Plywood

• Grille: Powder-Coated Steel

• Covering / Finish: Textured Paint

• Dimensions: 31.4"x 27.9"x 39" (Depth with Casters 36.6”) / 79.8cm x 70.9cm x 99.1cm (Depth with Casters 93 cm)

• Weight: 240 lbs / 109 kg

SALE: $4199.99
FREIGHT S&H in continental US (e-mail for international / offshore USA rates)
